JOINWE industrial videoscopes: JW-F, JW-G and JW-T series.

Professional videoendoscopes for remote visual inspection, distributed in Italy by DIPITECH, with motorized or mechanical 360° joystick, interchangeable probes Ø 0.85–6.0 mm, IP67 protection, 5.5'' OLED display and 3D measurement. They let you see and document the inside of components where direct access is not possible.

Explore the series Request an evaluation

JOINWE / RVI videoscopy

Three videoscope series for different needs.

Manufacturer: JOINWEShenzhen Joinwe Smart Co., Ltd — represented and distributed in Italy by DIPITECH Industrial Solution

JOINWE industrial videoscopes, often called industrial borescopes or endoscopes, cover remote visual inspection (RVI) from the tightest access to 3D measurement of defects. DIPITECH helps you choose series and probe for the inspection you actually need to do, with technical-commercial support in Italy.

JOINWE JW-F motorized industrial videoscope with 5.5-inch OLED display and articulated probe

JW-F series • Motorized

JOINWE JW-F — motorized 360° videoscope

The JW-F integrates a motorized joystick with 360° articulation and assisted functions (fast/slow mode, follow lock, guided stepping, fixed-point freedom, overload protection) for precise tip control in complex geometries. It uses an RK3588 processor and a 5.5'' OLED display.

Display: 5.5'' OLED, RK3588 processor
Articulation: 360° via motorized joystick
Probe diameters: 2.2 / 2.8 / 4.0 / 6.0 mm
View: forward or side, depending on the probe
Resolution: up to 1 MP
Probe protection: IP67, with immersion up to 10 m
Illumination: LED / fiber ≥100,000 lux
Storage: 128G + 64G, PDF report
Battery: ≥4 h runtime, 30 min of continuous video
Measurement: scalar

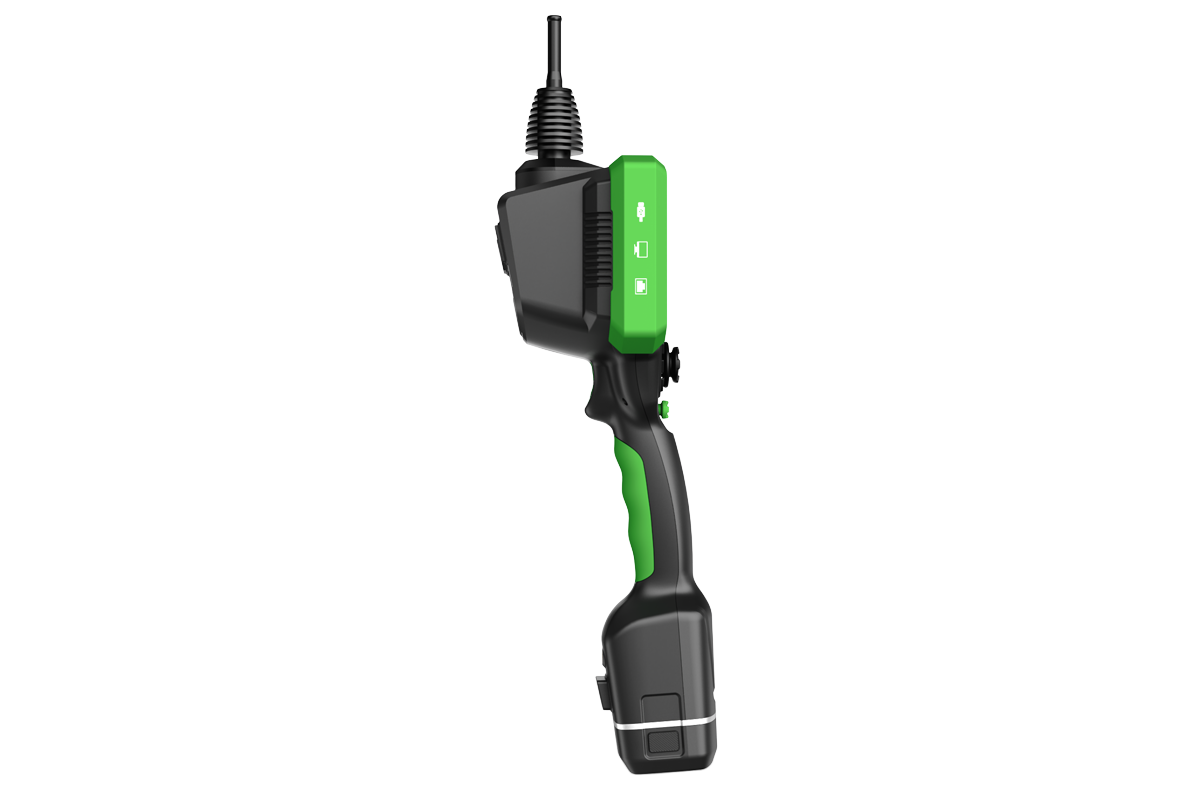

JOINWE JW-F videoscope with display and handle, internal inspection image on screen — JW-F: unit with OLED display and probe

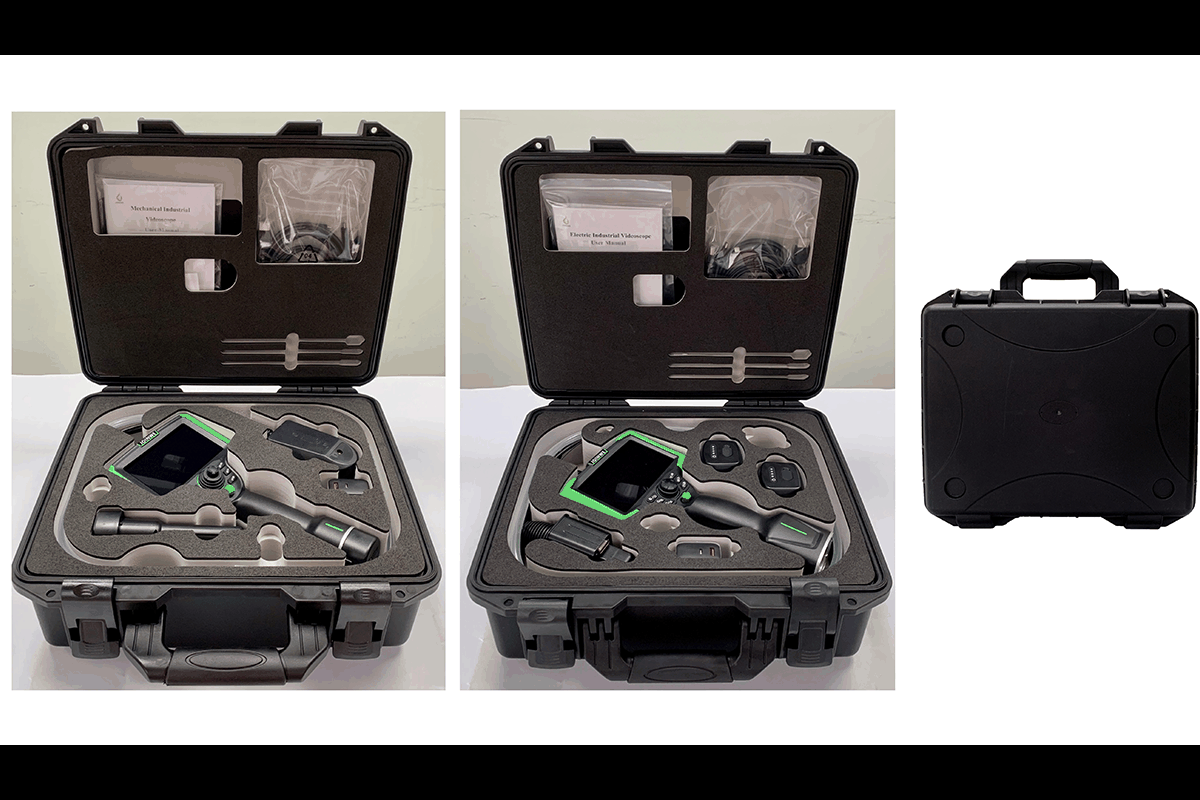

JOINWE JW-F hard case with videoscope, probes and accessories — Kit in hard case with accessories

The JW-F models are F22010FN-H (2.2 mm), F28010FN (2.8 mm), F40020FM (4 mm) and F60020FM (6 mm).

JOINWE JW-G mechanical industrial videoscope with 360-degree joystick and 5.5-inch OLED display

JW-G series • Mechanical

JOINWE JW-G — mechanical 360° videoscope

The JW-G shares the JW-F platform but uses a mechanical 360° joystick and offers the widest choice of diameters, starting at Ø 0.85 mm for the tightest access points. It is the series to choose when you need to get into very small openings while keeping direct control of the tip.

Display: 5.5'' OLED, RK3588 processor
Articulation: 360° via mechanical joystick
Probe diameters: 0.85 / 1.2 / 1.8 / 2.2 / 2.8 / 4.0 / 6.0 mm
View: forward only up to 1.2 mm, forward or side from 1.8 mm
Probe protection: IP67 (10 m immersion)
Illumination: LED / fiber ≥100,000 lux
Storage: 128G + 64G, with PDF report generation
Measurement: scalar

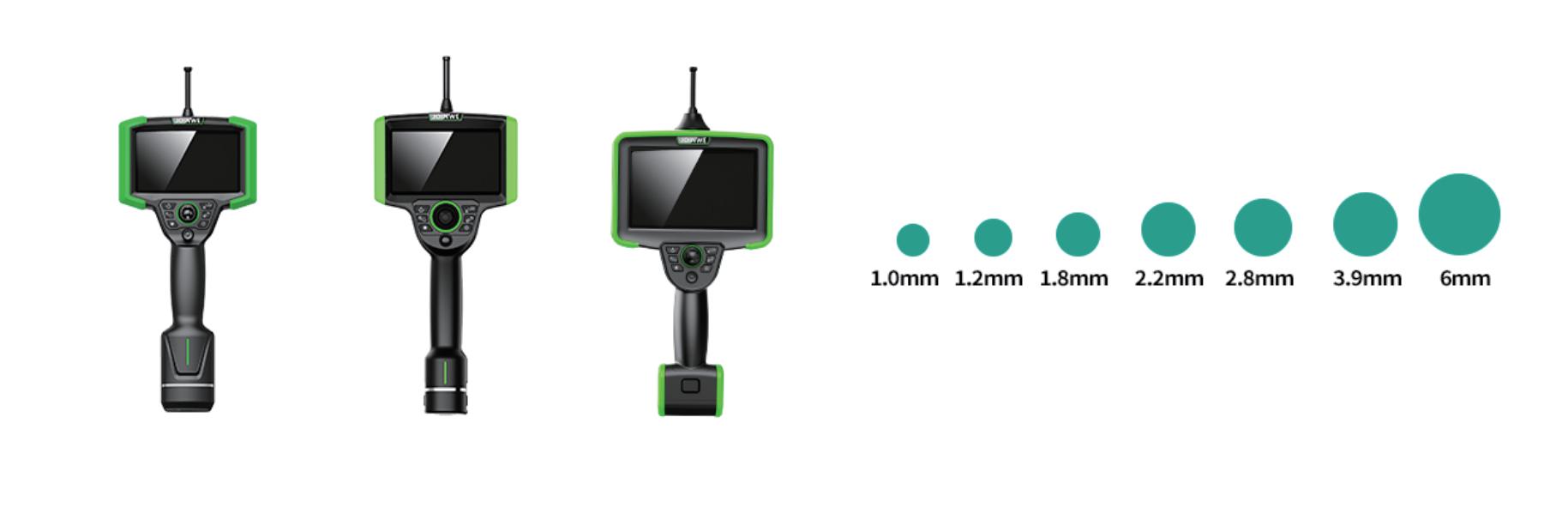

JOINWE videoscope range with probe diameters from 1.0 to 6 mm compared — Probe diameter range 1.0–6 mm

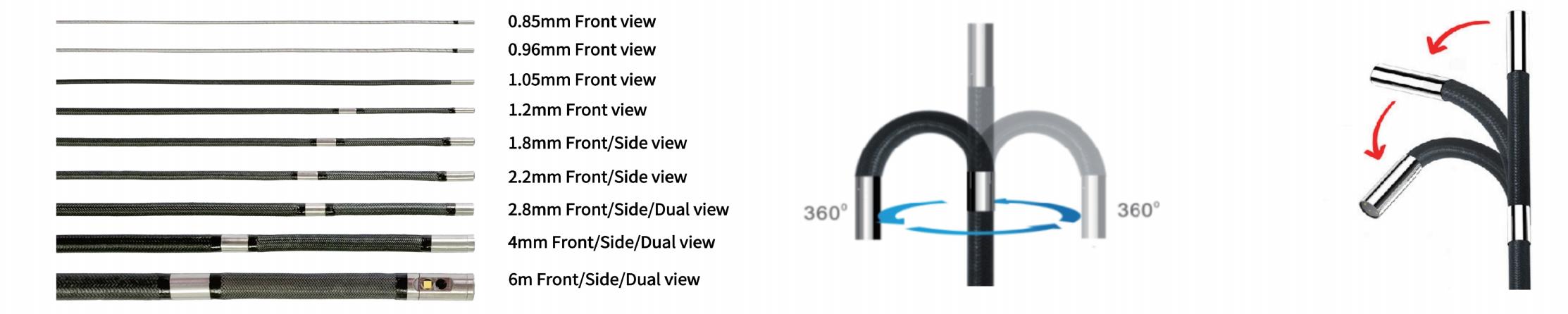

JOINWE insertion tubes with forward, side and dual view and 360-degree tip articulation — Interchangeable probes and tip articulation

The JW-G models are G08505FN (0.85 mm), G12010FN (1.2 mm), G18010DN (1.8 mm), G40020FM (4 mm) and G60020FM (6 mm).

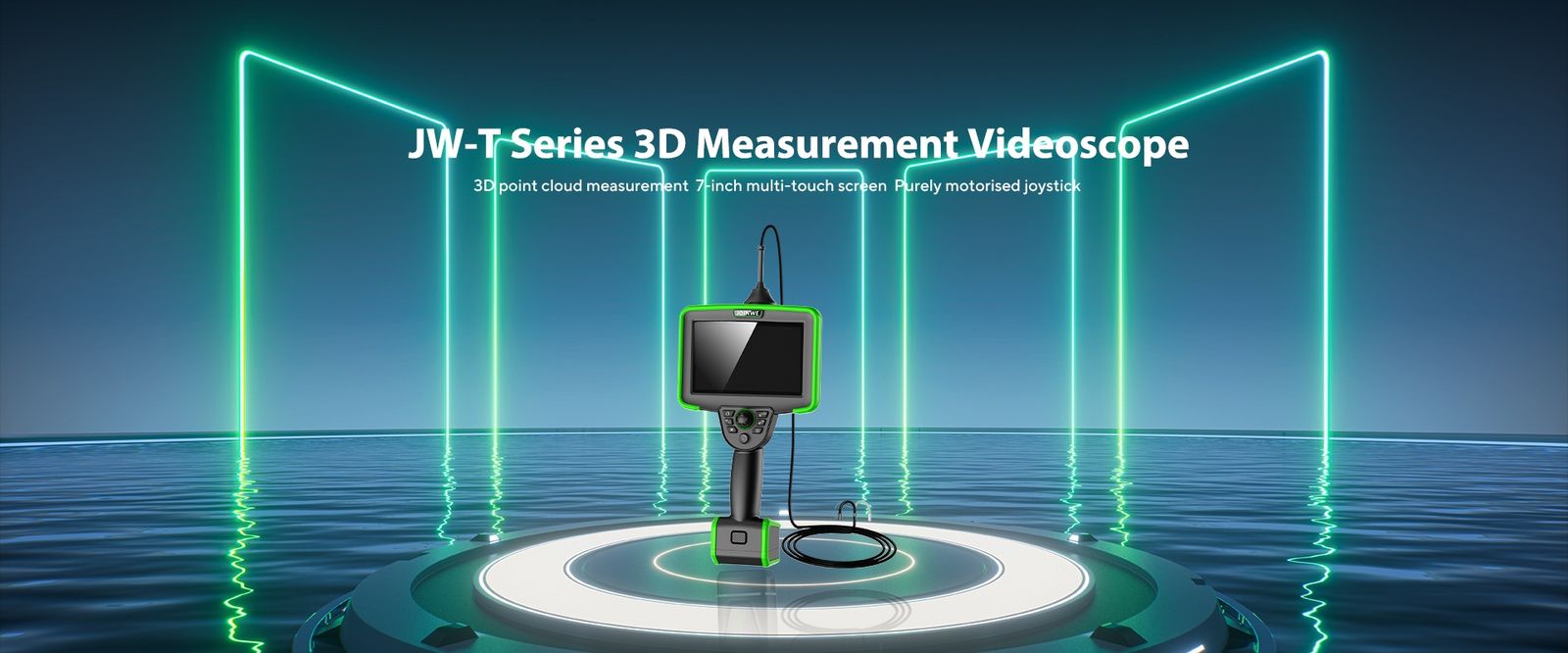

JOINWE JW-T industrial videoscope with 3D measurement and 7-inch IPS display

JW-T series • 3D measurement

JOINWE JW-T — stereo 3D-measurement videoscope

The JW-T adds binocular stereo 3D measurement, processed on the GPU as a point cloud and shown on a 7'' IPS LCD display. Distance, depth, point-to-line and area are measured directly in the field, so a defect is quantified rather than just observed.

Display: 7'' IPS LCD panel
Measurement: binocular stereo 3D with GPU processing and point cloud
Modes: distance, depth, point-to-line, area
Probe diameter: 4.0 mm, the only one available for this series
Probe protection: IP67 (10 m immersion)
Illumination: LED / fiber ≥100,000 lux

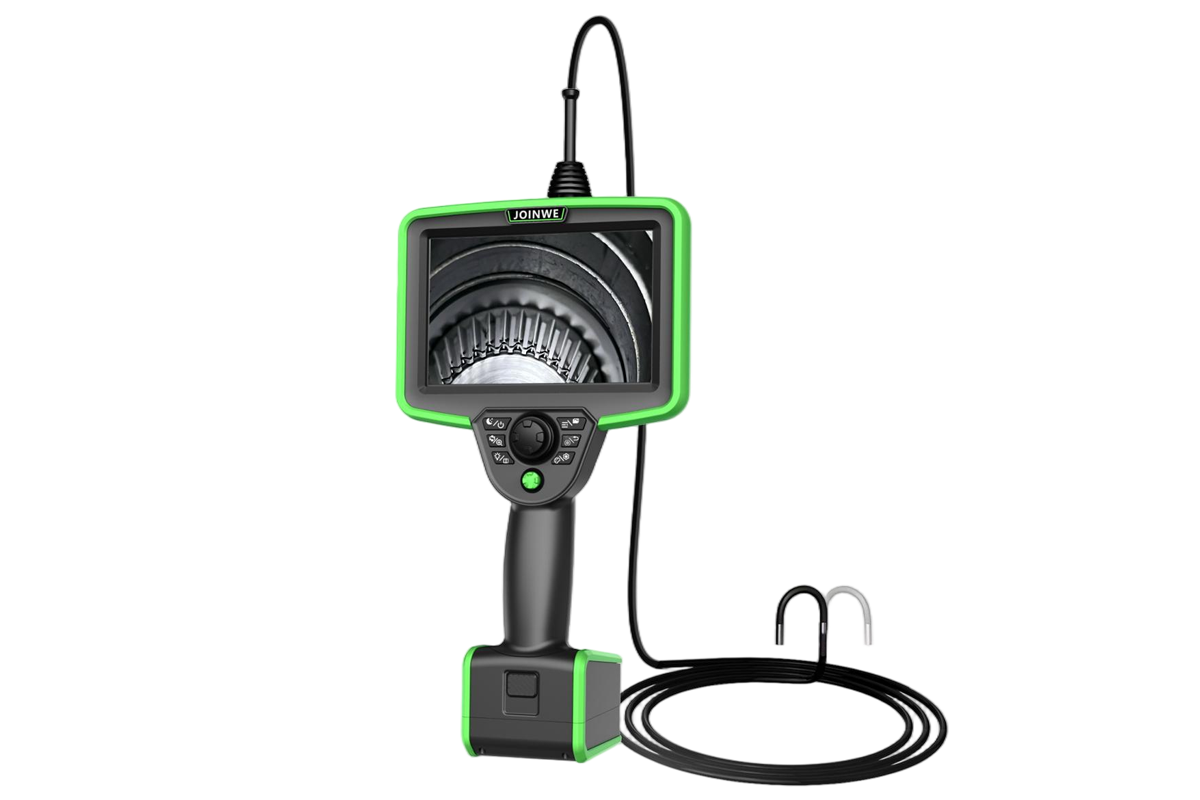

JOINWE JW-T videoscope with inspection image on screen and flexible probe — JW-T: unit with 3D measurement on screen

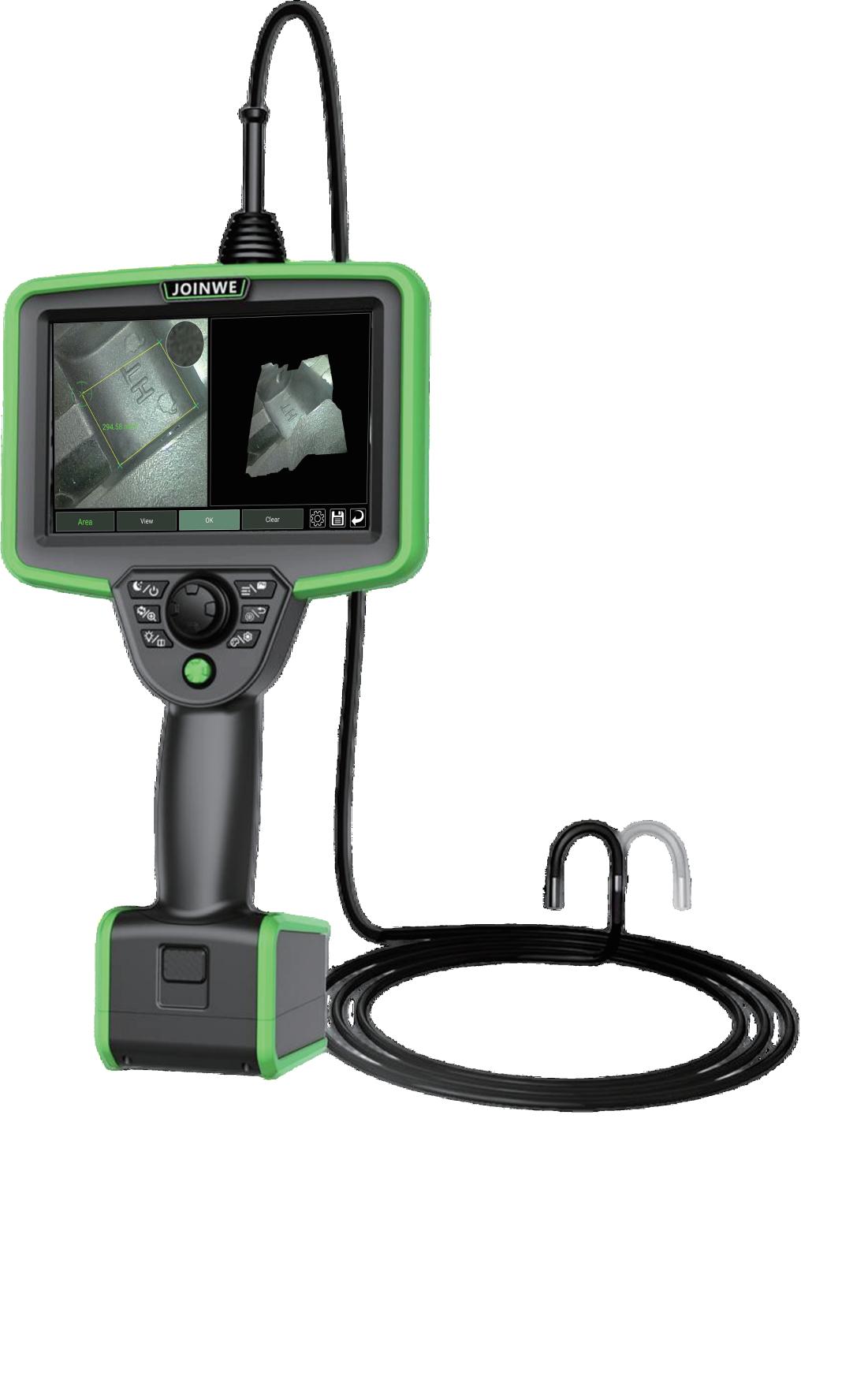

JOINWE JW-T videoscope for 3D measurement with 7-inch display — JW-T 3D series

The JW-T model is the T40020FN (4 mm, 3D measurement).

Common features

Shared platform across all JOINWE series.

The three series share the JOINWE optical and mechanical architecture, with interchangeable probes and components designed for intensive industrial use.

Sapphire lens

The optics are protected by an anti-scratch sapphire lens that withstands high temperatures and keeps the image sharp even in harsh environments.

Interchangeable probes

Interchangeable insertion tubes range from Ø 0.85 to 6.0 mm and from 0.5 to 12 m in length, so the same unit covers different access points and distances.

Tip articulation

The tip articulates 150–170° up and down, to point the optics at walls, lateral details and complex geometries.

IP67 protection

The probe is IP67, withstands immersion up to 10 m and contact with weak acids and bases, gasoline, diesel and oils, which makes it suitable for plants, engines and petrochemical sites.

Powerful illumination

LED or fiber-optic illumination exceeds 100,000 lux and helps reveal cracks, corrosion, deposits and fine damage.

Documentation and reports

Photos, videos, measurements and PDF reports document the inspection, make it traceable and support maintenance decisions.

This page details the technology described on the industrial borescopes and endoscopes page. You will also find the guide on how to choose the right videoscope and two complementary technologies, industrial ultrasonic testing and industrial radiography.

For more on applications, there are articles on borescope inspection of engines and turbines, inspection of tube bundles and piping, and buying criteria, from three-year cost to trials on real parts and support in Italy.

Applications

Where to use JOINWE videoscopes.

AerospaceTurbinesPipelinesCondensersPressure vesselsMachining / FoundryTanks and cylindersPetrochemicalAutomotiveEngines

Model table

JOINWE JW-F, JW-G and JW-T models.

The table helps narrow the choice by diameter, length, illumination and view. Price depends on the configuration, and DIPITECH provides it in an evaluation built around your application.

Model	Probe Ø	Length	Illumination	View	Notes
F22010FN-H	2.2 mm	0.5–12 m	LED / fiber	Forward / side	JW-F motorized, scalar measurement
F28010FN	2.8 mm	0.5–12 m	LED / fiber	Forward / side	JW-F motorized, scalar measurement
F40020FM	4.0 mm	0.5–12 m	LED / fiber	Forward / side	JW-F motorized, scalar measurement
F60020FM	6.0 mm	0.5–12 m	LED / fiber	Forward / side	JW-F motorized, scalar measurement
G08505FN	0.85 mm	0.5–12 m	LED / fiber	Forward	JW-G mechanical, ultra-narrow access
G12010FN	1.2 mm	0.5–12 m	LED / fiber	Forward	JW-G mechanical
G18010DN	1.8 mm	0.5–12 m	LED / fiber	Forward / side	JW-G mechanical
G40020FM	4.0 mm	0.5–12 m	LED / fiber	Forward / side	JW-G mechanical, scalar measurement
G60020FM	6.0 mm	0.5–12 m	LED / fiber	Forward / side	JW-G mechanical, scalar measurement
T40020FN	4.0 mm	0.5–12 m	LED / fiber	Forward	JW-T, stereo 3D measurement, 7'' display

Lengths indicate the range of interchangeable insertion tubes available on the JOINWE platform. Diameter, length, view and illumination are chosen based on the actual access point and on what you need to find.

FAQ

Frequently asked questions about JOINWE industrial videoscopes

What is the difference between JOINWE JW-F, JW-G and JW-T videoscopes?

The JW-F has a motorized joystick with 360° articulation and assisted functions. The JW-G uses a mechanical 360° joystick and has the widest choice of diameters, from 0.85 mm. The JW-T adds binocular stereo 3D measurement on a 7'' IPS display. All use interchangeable probes and a sapphire lens.

What probe diameters do JOINWE videoscopes offer?

JOINWE interchangeable probes range from Ø 0.85 to 6.0 mm, with lengths from 0.5 to 12 m and forward, side or dual view, so they adapt to different access points and geometries.

Are JOINWE videoscopes suitable for harsh environments?

Yes, the IP67 probe withstands immersion up to 10 m and contact with weak acids and bases, gasoline, diesel and oils, while the scratch-resistant sapphire lens handles high temperatures. That is why JOINWE videoscopes are also used on turbines, engines, plants and in petrochemical work.

Can JOINWE videoscopes take measurements and generate reports?

Yes, the JW-F and JW-G series perform scalar measurement and generate PDF reports, while the JW-T adds 3D measurement (distance, depth, point-to-line, area) derived from the binocular point cloud.

How do I request a quote for a JOINWE videoscope?

To get started we need the access diameter, the length to reach, what you need to inspect and the working environment. DIPITECH, JOINWE’s distributor in Italy, recommends the most suitable configuration and prepares the evaluation. Use the form below, WhatsApp or email.

Application support

Support in choosing and after purchase.

Beyond the choice of series and probe, DIPITECH remains your technical point of contact in Italy after the purchase.

Solution configuration

Choice of series, probe diameter, length, view, illumination, accessories and software based on the application.

First inspections

Advice on setting up probe, illumination and image capture when you start using the instrument on your process.

Service and spare parts

Connection with JOINWE for service, probes and spare parts.

Contact

Request an evaluation or a quote for a JOINWE videoscope.

If you need to buy or evaluate an industrial videoscope, DIPITECH Industrial Solution, JOINWE’s distributor in Italy, helps you clarify the requirement and proposes the configuration that fits your access, with a quote within 24 hours.

Application request

Tell us about the inspection to evaluate.

Include access diameter, length to reach, what you need to inspect and the working environment.
